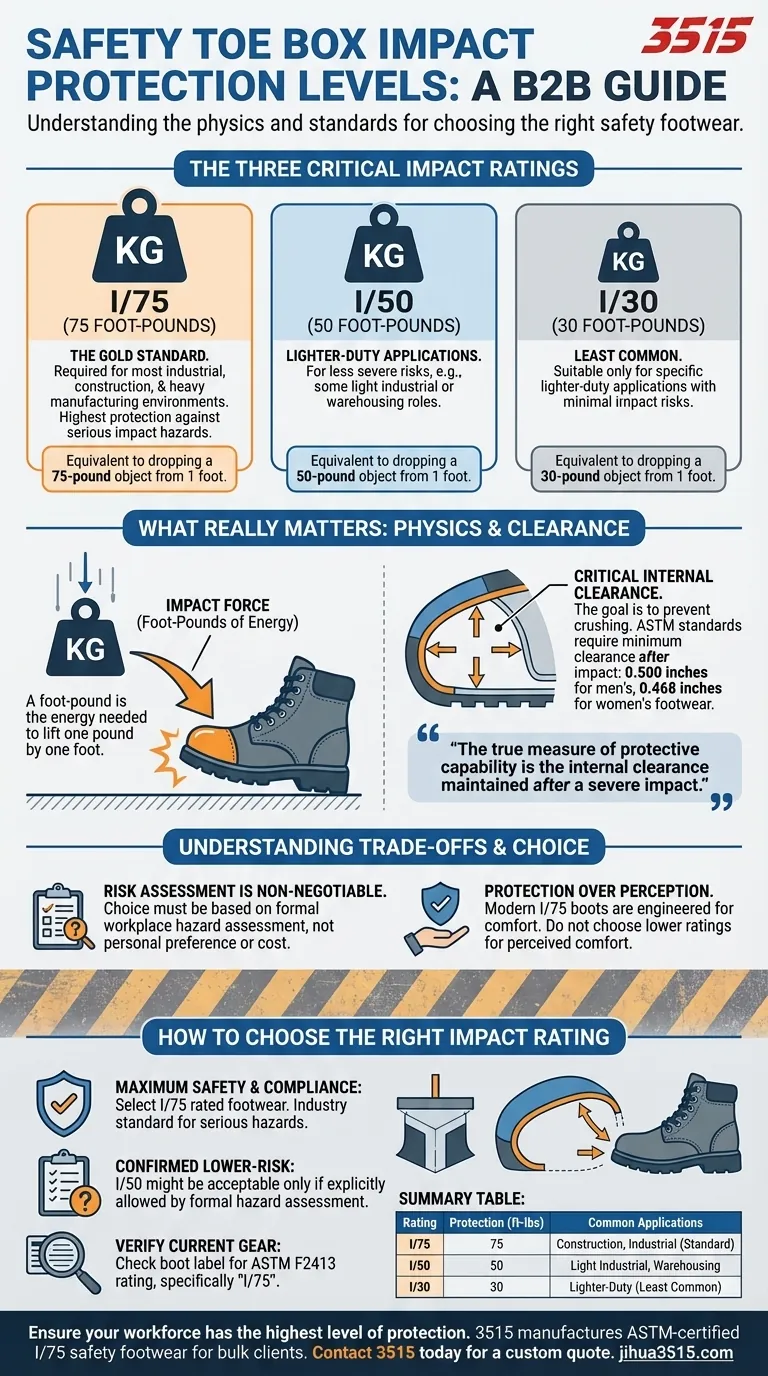

To select the right safety footwear, you must understand the specific levels of impact protection offered. Safety toe boxes are rated at three distinct levels: I/75, which protects against impacts of 75 foot-pounds; I/50, for 50 foot-pounds; and I/30, for 30 foot-pounds. For most industrial and construction environments, the I/75 rating is the required standard.
The impact rating on a safety boot is not just about the force it can withstand, but about the critical amount of space it maintains to protect your toes after a severe impact. This internal clearance is the true measure of its protective capability.
What the Impact Ratings Really Mean
To make an informed decision, you need to look beyond the numbers and understand the physics and testing standards that give them meaning. The rating is a guarantee of performance under specific, stressful conditions.
Understanding Foot-Pounds of Energy
A foot-pound is a unit of energy. It represents the energy required to lift one pound by a vertical distance of one foot.
Therefore, an I/75 rating means the toe box can protect you from an impact equivalent to dropping a 75-pound object from a height of one foot. This is a significant amount of force concentrated on a small area.
The Critical Role of Clearance
The ultimate goal of a safety toe is to prevent a crushing injury. The ASTM standard specifies that after the designated impact, a minimum clearance must be maintained inside the toe box.
For men's footwear, this clearance is 0.500 inches. For women's footwear, it is 0.468 inches. A boot fails the test if the toe cap deforms beyond this point, as it would not have adequately protected the wearer's foot.
The Different Levels of Protection
Each rating corresponds to a different work environment and level of risk. Choosing the correct one is essential for compliance and personal safety.
I/75: The Gold Standard
This is the highest level of impact protection available for safety footwear. It is the standard requirement for the vast majority of hazardous jobs, including construction, manufacturing, and heavy industrial work where the risk of falling tools or materials is high.
I/50 and I/30: Lighter-Duty Applications
These ratings offer a lower level of protection for work environments with less severe impact risks.
You might find these ratings in footwear designed for certain light industrial, warehousing, or assembly roles where the primary hazards are smaller or lighter falling objects. However, they are far less common than the I/75 standard.
Understanding the Trade-offs
While it may seem that choosing the highest rating is always the only option, understanding the context helps clarify why different levels exist.
Risk Assessment is Non-Negotiable
The choice of impact rating should never be based on personal preference or cost. It must be determined by a formal risk assessment of your specific work environment and job function. Most employers mandate an I/75 rating to ensure the highest level of safety.
Protection Over Perception
Do not select a lower-rated boot because you believe it will be lighter or more comfortable. Modern safety boots, whether using steel, aluminum, or composite toes, are engineered to meet the I/75 standard without significant bulk or weight penalties. The safety margin provided by an I/75 toe cap is a critical last line of defense.
How to Choose the Right Impact Rating
Your choice must be guided by your work environment's specific hazards and your employer's safety requirements.
- If your primary focus is maximum safety and compliance in industrial settings: You must select footwear with an I/75 rating, as this is the industry standard for protecting against serious impact hazards.
- If your primary focus is work in a confirmed lower-risk environment: An I/50 rating might be acceptable, but only if a formal workplace hazard assessment explicitly allows for it.
- If your primary focus is verifying your current footwear: Check the label on the tongue or inside of your boot for the ASTM F2413 rating, which will clearly state "I/75" if it meets the standard.
Ultimately, understanding these ratings empowers you to verify your gear and make an informed choice that ensures your safety on the job.
Summary Table:
| Impact Rating | Protection Level (Foot-Pounds) | Common Applications |
|---|---|---|
| I/75 | 75 ft-lbs | Construction, heavy manufacturing, industrial (Standard) |
| I/50 | 50 ft-lbs | Light industrial, some warehousing (Less common) |
| I/30 | 30 ft-lbs | Lighter-duty applications (Least common) |
Ensure your workforce has the highest level of protection. As a large-scale manufacturer, 3515 produces a comprehensive range of ASTM-certified safety footwear with I/75 rated toe boxes for distributors, brand owners, and bulk clients. Our production capabilities encompass all types of safety shoes and boots designed for maximum impact resistance and compliance.
Contact 3515 today to discuss your safety footwear needs and receive a custom quote.
